Engineered rau kev zoo tshaj plaws. Ua rau koj txoj kev lag luam.
Raws li tus khub lag luam wholesale, koj xav tau cov khoom lag luam uas muaj kev ntseeg siab, lub zog ua tau zoo thiab raug nqi kom tau raws li kev xav tau kev lag luam. Zoo, yog qhov twg lub solis siab voltage cia inverter tuaj rau hauv kev ua si. Nws yog raws li lub zog loj dua, kev ua tau zoo thiab kev pabcuam lub neej kom muaj ib qho ntawm cov kev ua nqi zoo tshaj plaws.
Cov khoom tseem ceeb khoom zoo
1. Tshaj lub zog txuag thiab sau qoob loo
Muaj zog loj heev yog tus yuam sij rau cov neeg tau txais kev pab them rov qab. Peb lub siab siab voltage cia inverter muaj MPT (siab tshaj plaws fais fab taw tes) kev hloov pauv ntawm kev hloov pauv hauv hnub ci. Cov thev naus laus zis tas li hloov kho thiab rov ua kom haum rau cov chaw ua teb ntawm lub hnub ci Los ntawm kev coj kom zoo dua ntawm muaj hnub ci zog thaum lub hnub ci ntim kev xav tau kev pab ntau dua thiab tuaj yeem muab cov nyiaj them rov qab ntau dua rau koj cov neeg siv khoom.
2. Txhim kho kev cia siab thiab tsis tu ncua
System Ua tsis tau cov nqi txhawb nqa thiab tuaj yeem ua rau koj lub koob npe nrov. Qhov S6 - eh3p yog tsim rau kev siv sijhawm ntev. Nws muaj qhov siab - qib IP66 Kev tiv thaiv lub ntsiab lus uas nws yog qhov tseem ceeb thiab yog qhov tseem ceeb rau cov chaw nyob sab nraud. Tsis tas li ntawd, nrog lub xeev - ntawm - Tus qauv kev tswj hwm hluav taws xob muaj kev nyab xeeb hauv lawv cov khoom siv cua sov uas muaj kuab heev los yog kub tshaj plaws ambient. Qhov no txhais tau tias koj S6-EH3P muaj kev ua haujlwm ntev thiab txhim khu kev qha.
3. Qhov txaus siab rau cov pa siab thiab lub peev xwm thaub qab muaj peev xwm
Lub zog ywj pheej thiab kev ruaj ntseg tau dhau los ua ntau thiab ntau dua qhov kawg - cov neeg siv. Qhov no hybrid inverter yog hloov tau, muab cov versatility ntawm kev tswj hwm hluav taws xob kom yooj yim thiab muab cov roj teeb tseem ceeb lub hwj chim thaum muaj zog; Daim phiaj swb. Cov inverter tus qauv tsim kev txhawb nqa cov roj teeb uas tau lees txais ntau yam kev lees paub siv roj teeb siv tau zoo, muab kev hloov pauv rau koj cov qauv hauv cov kab ke thiab cov qauv tsim. Qhov kev hloov pauv no tso cai rau koj, ua tus wholesaler, kom nkag mus saib cov kev lag luam sib txawv los ntawm ib qho system uas tuaj yeem ua rau pom.
4. Advanced Grid txhawb nqa rau kev sib xyaw ua ke
Ua raws li cov kab ntawv ua raws cai yog qhov tseem ceeb tivthaiv rau kev ntxhov siab - kev ua haujlwm pub dawb thiab kev ua haujlwm ntev. Lub Solis High Voltage exterfort cia inverter yog muab nrog cov phiaj xwm pab pawg txhawb zog thiab ua raws cov kab lis haujlwm thoob ntiaj teb thiab cov qauv hauv ntiaj teb. Lub inverter yuav, piv txwv li, txhawb nqa voltage thiab ntau zaus caij {}}} los ntawm kom cov hniav sib luag thiab cov txheej txheem nrawm rau cov neeg siv khoom tau txhim kho.
Peb lub zog tsim khoom: Koj cov khoom siv tau zoo dua
Rau cov neeg siv khoom lag luam wholesale cov khoom lag luam, cog qoob loo nyob rau hauv ib qho khoom txuas ntxiv dhau nws cov datasheet mus rau lub tuam txhab thiab cov txheej txheem tom qab nws. Koj xav tau tus khub nrog lub peev xwm tsim tau kom muaj qhov zoo ib txwm muaj, ntawm - lub sij hawm tus me nyuam, thiab cov khoom xa tuaj.
1. Kev tsim kho kom haum rau cov txiaj ntsig zoo ib yam
Peb ua haujlwm siab siv cov kab ntau lawm los txo rau tib neeg qhov yuam kev thiab ua kom koj tau txais cov khoom lag luam zoo ib yam. Peb cov kab ke suav nrog cov thev naus laus zis qib siab, xws li cov khoom siv cov kev coj ua hauv cov khoom siv thiab cov khoom siv hlau rau kev sib dhos precision hauv peb cov xwm txheej. Qhov siv ntawm "ntse Hoobkas" txheej txheem nce cov tshuaj ntsuab ntau ntxiv thiab lav cov khoom lag luam hauv cov kev txiav txim loj dua.
2. Ntiaj teb chav kawm zoo tswj txhua theem
Qhov ua tau zoo yog ua rau txhua yam peb ua nyob hauv cov txheej txheem tsim khoom. Txhua S6-EH3P Inverter undergoes ib qho kev sim ua ntej tau xa rau koj. Kev kuaj mob suav nrog kev kuaj zoo thiab ua tau zoo hauv qab sim cov neeg siv khoom. Peb kev cog lus rau qhov zoo yog txhawb los ntawm peb lub tswv yim thoob ntiaj teb thiab tswj hwm cov txheej txheem kev txhim kho thiab kev txhim kho txuas ntxiv.
3. Pov thawj R & D thiab Tsim Kho
Peb cov kev tshawb fawb thiab kev tsim kho tau ua rau cov IMS inverers koj yuav hnub no. Peb muaj pab pawg R & D tau mob siab kom nce cov khoom siv thev naus laus zis thiab cov khoom lag luam tshaj plaws niaj hnub no thaum xav txog cov khoom lag luam xav tau rau lub zog.
4. Cov khoom siv sib txuas nrog cov saw thiab cov peev txheej hnyav
Peb paub txog qhov tseem ceeb ntawm kev vam khom tau. Ua tsaug rau peb cov kev sib xyaw ua ke thiab ntsug ua ke sib xyaw ua ke nrog peb lub peev xwm tsim tau lag luam, peb tuaj yeem tswj cov sijhawm ua kom haum. Peb muaj peev xwm teb nrog agility rau koj cov kev txiav txim thiab xyuas kom ncav cuag koj txoj kev ua lag luam thiab kev ua lag luam kev ua lag luam.
Tus khub nrog tus neeg tsim kev ntseeg siab
Lub S6 - eh3p (8 {}}}}}}} nd-h yog ntau tshaj li qhov inverter; Nws yog qhov tshwm sim ntawm kev txawj xav engineering, kev rau txim tsim, thiab kev nkag siab zoo ntawm kev xav tau kev lag luam. Nws yog, thiab yuav tso cai rau kev ntseeg siab, cov cuab tam zoo rau koj cov neeg siv khoom, thiab txaus nyiam, muaj txiaj ntsig zoo rau koj txoj kev lag luam.
Hu rau pawg neeg lag luam wholesale Niaj hnub no los sib tham txog kev koom tes nrog, tus nqi sib tw, thiab peb cov kev pabcuam pabcuam.

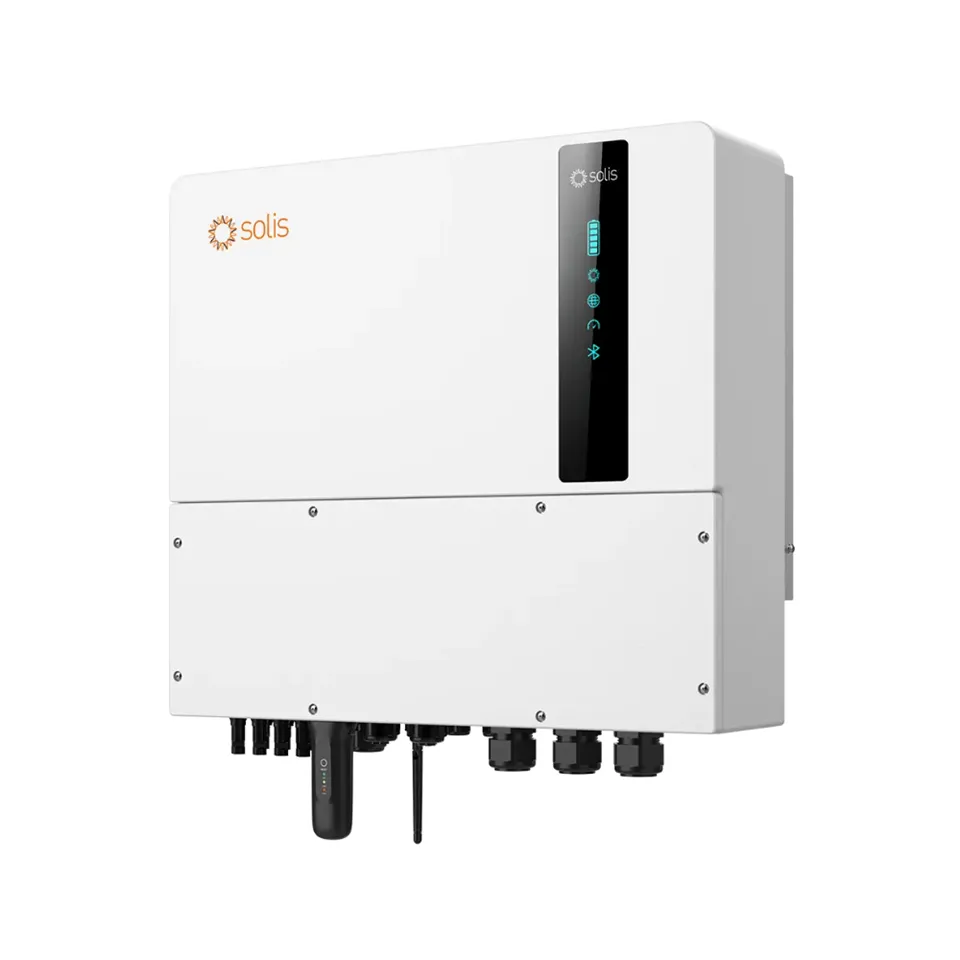

Zolis High voltage extfer
Cim npe nrov: Zolis High voltage exterrational cia inverter, Tuam Tshoj Solis Voltage Zog Cia Cov Khoom Siv Hluav Taws Xob, Chaw muag khoom, Hoobkas
| Datasheet | S6 -} Eh3p (8 {{4 4}} 12) k - lv-nd-h | ||
| Qauv | 8K | 10K | 12K |
| Cov tswv yim DC (PV sab) | |||
| Pom zoo Max. PV array loj | 16 kw | 20 kw | 24 Kw |
| Max. Siv Pv Cov Lus Qhia Hwj Chim | 12,8 kw | 16 kw | 19.2 KW |
| Max. kev tawm tswv yim voltage | 1000 V | ||
| Cov Ntsuas Hluav Taws Xob | 600 V | ||
| Pib -} heev voltage | 160 V | ||
| MPT Voltage ntau | 200 - 850 V | ||
| Max. input tam sim no | 4 × 16 A | 4 × 20 A | |
| Max. Circuit Court Tam Sim No | 4 × 24 A | 4 × 30 A | |
| MPP num / Max. Cov hlua khi | 4 / 4 | ||
| Roj teeb | |||
| Roj teeb hom | Lis {{0} ion ion | ||
| Roj Teeb Hluav Taws Xob | 120 - 800 V | ||
| Max. Them Nqi / Tso Tawm | 8 kw | 10 kw | 12 kw |
| Max. them / tawm tam sim no | 50 A | ||
| Kev sib txuas lus | Tuaj yeem / rs485 | ||
| Tso zis AC (Grid sab) | |||
| Ntsuas hluav taws xob lub zog | 8 kw | 10 kw | 12 kw |
| Max. Pom meej lub zog tso zis | 8 KVA | 10 KVA | 12 kva |
| Rated Grid Voltage | 3 / n) / PE, 133 V / 230 V | ||
| Qhov Chaw Sib Tw Loj | 50 HZ / 60 HZ | ||
| Rated daim phiaj tso tawm tam sim no | 20.1 A | 25.1 A | 30.1 A |
| Max. Tawm Tam Sim No | 20.1 A | 25.1 A | 30.1 A |
| Lub zog muaj | >0.99 (0.8 ua rau - 0.8 lagging) | ||
| Thdi | < 3% | ||
| Inget Ac (Grid Sab) | |||
| Kev tawm tswv yim voltage ntau | 184 - 265 V | ||
| Max. input tam sim no | 30.1 A | 37.7 A | 45.2 A |
| Qhov Chaw Sib Tw Loj | 50 HZ / 60 HZ | ||
| Zaus heev | {{045 - 55 hz / 55 - 65 hz | ||
| Cov tswv yim tshuab hluav taws xob | |||
| Max. Cov Khoom Siv Hluav Taws Xob | 8 kw | 10 kw | 12 kw |
| Max. input tam sim no | 20.1 A | 25.1 A | 30.1 A |
| Cov Lus Qhia Rated Ntau | 50 HZ / 60 HZ | ||
| Cov zis ac (rov qab - tuaj) | |||
| Ntsuas hluav taws xob lub zog | 8 kw | 10 kw | 12 kw |
| Max. Pom meej lub zog tso zis | 1.6 lub sij hawm ntawm rated zog, 10 s | ||
| Rov qab -} nce sijhawm hloov | < 10 ms | ||
| Cov Khoom Siv Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob | 3 / n) / PE, 133 V / 230 V | ||
| Nyob Qhov Coob | 50 HZ / 60 HZ | ||
| Rated Tso Tawm Tam Sim No | 20.1 A | 25.1 A | 30.1 A |
| THDV (@Lineear load) | < 2% | ||
| Ua tau zoo | |||
| Max. ua tau zoo | 96.70% | ||
| EU efficievy | 96.39% | ||
| Pat tau them los ntawm PV max. ua tau zoo | 96.23% | ||
| Pat tau them / tso tawm rau AC Max. ua tau zoo | 96.43% | ||
| Kev povhwm | |||
| Anti -} Islands | Tau | ||
| Tso zis dhau kev tiv thaiv tam sim no | Tau | ||
| Kev tiv thaiv luv luv ntawm Circuit Court | Tau | ||
| Sib xyaw AFCI 2.0 | Yam ua tau | ||
| Sib xyaw DC Hloov | Tau | ||
| DC Rov qab -}} polarity tiv thaiv | Tau | ||
| PV ntau tshaj voltage tiv thaiv | Tau | ||
| Roj teeb roj teeb rov qab | Tau | ||
| Cov Ntaub Ntawv Dav Dav | |||
| Max. Cov Sij Hawm Them Tsis Txaus (Daim phiaj & rov qab-} | 100% | ||
| Max. Lub Hwj Chim rau ib theem (Daim phiaj & rov qab-} | 40% rated zog | ||
| Qhov loj me (W × h × d) | 563 × 546 × 235 hli | ||
| Qho hnyav | 32.6 kg | ||
| Lub ntsiab | Transformerless | ||
| Tus kheej - noj mov (hmo) | < 25 W | ||
| Kev khiav hauj lwm thaj chaw kub | -25 +60 degree | ||
| Tus txheeb ze cov av noo | 0 - 100% | ||
| Kev Tiv Thaiv Kev So | Ms66 | ||
| Suab nrov emission (raug) | < 65 dB(A) | ||
| Cua Txias Tswv Yim | Ntse kiv cua - txias | ||
| Max. Kev ua hauj lwm qhov chaw | 4000 m | ||
| Daim Phiaj Kev Sib Txuas Kev Txuas Lus | Pab 50549-1 / -10, VDE4105, Ren342 | ||
| Kev Nyab Xeeb / EMC Txuj | IEC / EN 62109-1 / -2, IEC / EN 61000-6-1 / -2 / -3 / -4 | ||
| Nta | |||
| PVV Txuas | MC4 Txuas Txuas | ||
| Roj Teeb | Lub davhlau ya nyob twg | ||
| AC Txuas | Lub davhlau ya nyob twg | ||
| Qho sau | LED Taw Qhia & Bluetooth + App | ||
| Kev sib txuas lus | Tuaj yeem, RS485, Ethernet, yeem: Wi -} fi, ntawm tes, lan | ||
